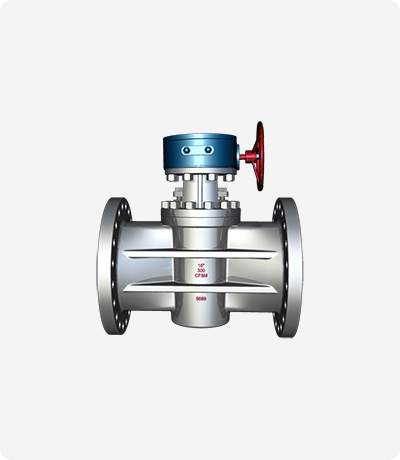

Plug Valve

Plug valves NPS 2″–24″, Class 150–1500LB — lubricated and sleeve designs for tight, economical shut-off.

Size
NPS 2″–24″
Pressure rating
Class 150–1500LB
Material
WCB, LCB, CF8, CF8M, CF3, CF3M
Face-to-face
ASME B16.10 · API 6D
End connection
ASME B16.5 · ASME B16.25
Test
ISO 5208 · API 6D
Structure
Short · regular · venturi · full operation type
Operation
Manual · worm gear · electric · pneumatic
Plug Valve — KATAPlug Valve — KATAPlug Valve — KATAPlug Valve — KATAPlug Valve — KATA
Plug Valve — KATA

Design Features

  • Lift-then-turn operation — no seat abrasion
  • No cavity for media accumulation
  • Self-cleaning metal edge
  • Seal-grease injection option
  • Bi-directional sealing
Standards
ASME B16.34 · API 6D · API 599
Similar products

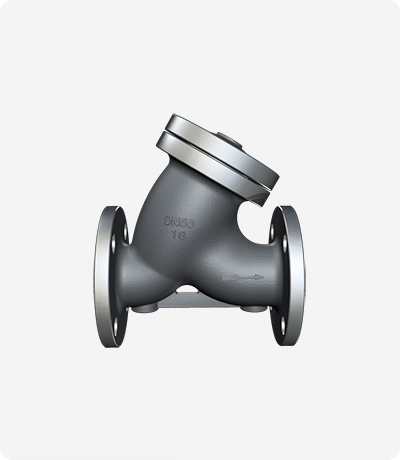

Y / Basket StrainerSmall Forged
