Gate Valve

Gate valve that opens by lifting a round or rectangular wedge out of the fluid path, with planar sealing surfaces between gate and seats — not intended for flow regulation, a pure on/off isolation valve. Cast steel wedge gate valve to API 600 / BS 1414: flanged and butt-welding ends for petroleum, petrochemical and allied industries.

Size
NPS 2″–48″
Pressure rating
Class 150–2500LB
Material
WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M
Temperature
−29~540°C
Face-to-face
ASME B16.10 · BS EN 558
End connection
ASME B16.5 · B16.47 · BS EN 1092
Test
ISO 5208 · API 600 · BS 6755
Structure
OS&Y, bolted bonnet, single wedge
Operation
Manual · electric · pneumatic

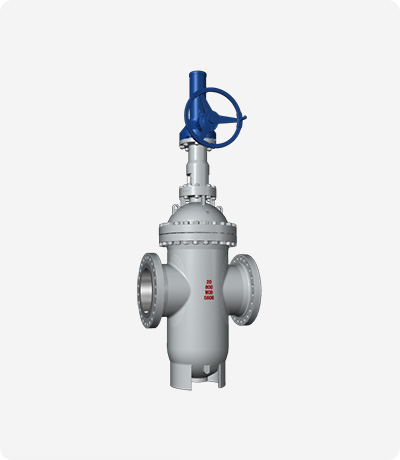

Gate Valve — KATAGate Valve — KATAGate Valve — KATAGate Valve — KATAGate Valve — KATA
Gate Valve — KATA

Design Features

  • Cast steel body — flanged or butt-weld ends
  • Bolted bonnet, outside screw & yoke (OS&Y)
  • Rising stem with handwheel; impact handwheel ≥10″
  • Solid, flexible or split wedge option
  • Renewable seat rings
  • Full-bore, low-pressure-drop design
Standards
API 600 · BS 1414 · ASME B16.34
